Fazua Ride 60#
Lightweight e-MTB drive system installed on the Transition Relay Alloy PNW. The Ride 60’s defining feature is its Take Out battery — the motor lives permanently at the bottom bracket while the Fazua Energy 430 battery slides out of the downtube without tools for separate charging or to reduce carry weight.
In the Network#
The Fazua Ride 60 is a self-contained system. The handlebar controller selects assist modes; the Fazua Companion app (via Bluetooth LE) provides telemetry, firmware updates, and mode customisation.
| Connection | Protocol | Role |
|---|---|---|
| Garmin Edge MTB | ANT+ | Current mode, battery %, rider power & cadence |
| Handlebar controller | Wired (proprietary) | Mode selection, battery indicator |
Key Specifications#

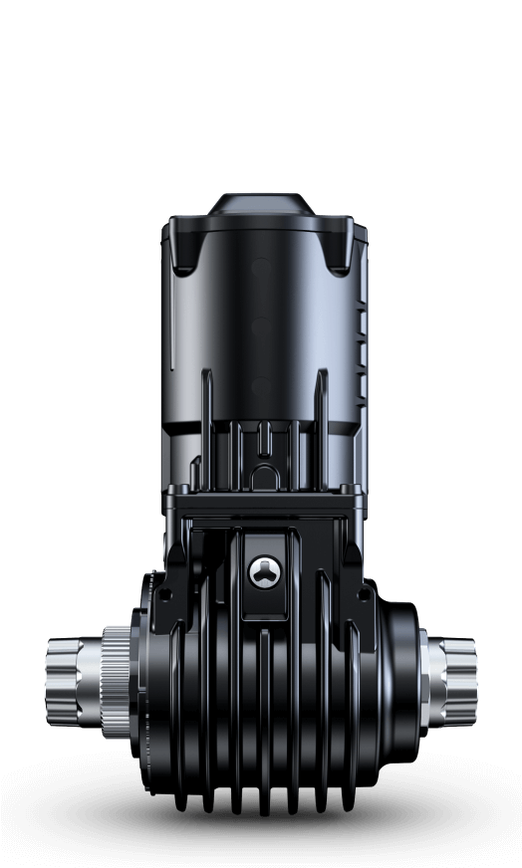

Motor#
| Attribute | Spec |
|---|---|
| Model | Fazua Ride 60 |
| Torque | 60 Nm |
| Peak power | 450 W |
| Motor type | Mid-drive (bottom bracket integrated) |
Battery#
| Attribute | Spec |
|---|---|
| Model | Fazua Energy 430 Take Out |
| Capacity | 430 Wh |
| Removal | Tool-free — slides out of downtube |
| Charging | External via dedicated charger (removed from bike) |
Assist Modes#
| Mode | Character |
|---|---|
| Off | No assist — standard bike behaviour |
| Breeze | Light assistance, maximum range |
| River | Balanced trail assist |
| Rocket | Maximum power output |
Modes are selected via the handlebar controller. Power delivery curves for each mode are adjustable in the Fazua Companion app.
Handlebar Controller#
Bar-mounted unit with two buttons (mode up/down) and an LED indicator showing current mode and battery level. Designed to be operated with gloves without looking down.
Connectivity#
| Protocol | Purpose |
|---|---|
| ANT+ | Garmin Edge MTB — current mode, battery %, rider power & cadence |
| Bluetooth LE | Fazua Companion app (iOS/Android) |
The Fazua Companion app provides:
- Live power, cadence, and speed
- Per-mode power curve customisation
- Battery state and estimated range
- Firmware updates
- Ride history
