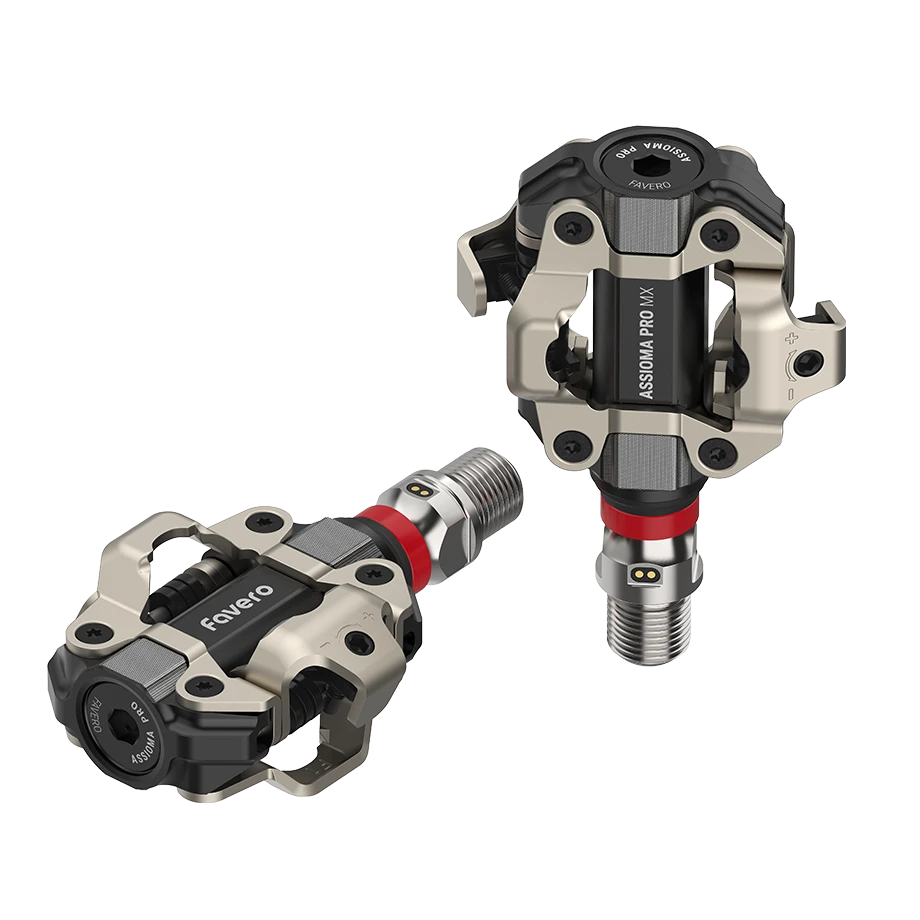

Favero Assioma Pro MX#
Dual-sided SPD power meter pedals installed on the Canyon Grizl CF 8 Di2. Measures and broadcasts real-time power, cadence, and left/right balance simultaneously over ANT+ and Bluetooth LE.
In the Network#
Broadcasts power data to Garmin Edge MTB via ANT+. The Edge aggregates this alongside Di2 and GPS data into a single .fit file.
Key Specifications#
| Attribute | Spec |
|---|---|
| Accuracy | ±1% (0–3,000 W) |
| Measurement | Dual-sided (left + right independent) |
| Cleat standard | SPD (Shimano 2-bolt) |
| Weight per pedal | 195.3 g (with sensor) |
| Stack height | 11.2 mm (pedal) / 17.2 mm (with cleat) |
| Q-factor | 53 mm |
| Max rider weight | 120 kg |
| Operating temp | −10°C to +55°C |
| Water resistance | IP67 |
| Battery | Internal rechargeable |
| Battery life | 160 hours (updated firmware, Feb 2026) |
| Charging | Proprietary magnetic charger |
| Price (CAD) | C$949.00 (dual-sided MX-2) |
Connectivity#
| Protocol | Connections | Data |
|---|---|---|
| ANT+ | Unlimited simultaneous | Power, cadence, balance, cycling dynamics |
| Bluetooth LE | Up to 3 simultaneous | Power, cadence, balance, cycling dynamics |
ANT+ broadcasts to Garmin Edge MTB. The unlimited concurrent ANT+ connections mean the Edge, a phone, and any other head unit can all receive simultaneously without conflict.
Metrics Transmitted#
| Metric | Detail |
|---|---|
| Total power | Combined L+R, watts |
| Left power | Watts |
| Right power | Watts |
| L/R balance | Percentage split |
| Cadence | 10–250 rpm |
| Torque effectiveness | % per pedal stroke |
| Pedal smoothness | % per pedal stroke |
| Pedal platform offset | Left/right |
Physical Design#
The Pro MX integrates all electronics (sensor, battery, Bluetooth/ANT+ radio, charging circuit) inside the spindle body — there is no external pod or module. This makes the pedal body clean, robust, and unaffected by pod damage during trail riding.
The SPD cleat compatibility makes these suitable for gravel and adventure riding where walkability matters — SPD shoes grip ground far better than two-bolt road cleats.
Calibration#
- Auto-zero: Performed automatically at each power-up
- Manual zero offset: Available via Garmin Edge or Favero app before any ride
- Temperature compensation: Active — compensates automatically for temperature changes during a ride
- Oval chainring compatible: Yes
Favero App#
The Favero Cycling app (iOS/Android) provides:
- Firmware updates
- Calibration
- Advanced cycling dynamics display
- Battery status
