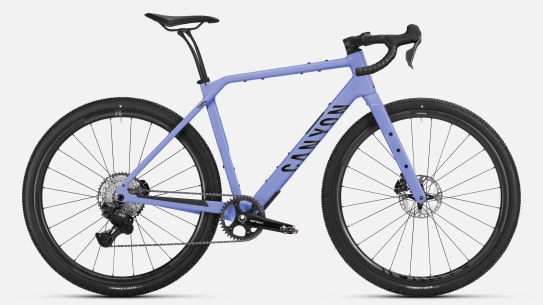

Canyon Grizl CF 8 Di2 (2026)#

Canyon’s all-road adventure bike in full-carbon CF trim, paired with a mixed Shimano GRX/XT Di2 electronic drivetrain. Designed for long-distance bikepacking and adventure riding — capable on everything from road to rough singletrack.

Shimano GRX Di2 — electronic groupset
Favero Assioma Pro MX — power meter pedals
Garmin Edge MTB — head unit mounted on handlebars
Garmin Varia RTL515 — radar tail light on seatpost

Frame & Fork#

Attribute	Spec
Frame	Canyon Grizl CF (carbon fibre), 1,110 g
Bottom bracket	Shimano Pressfit BB72 (PF 86.5 mm)
Rear axle	12 × 142 mm thru-axle (DT Swiss)
Seatpost diameter	27.2 mm
Tire clearance	54 mm (700c)
Frame mounts	Rack mounts, bottle cage mounts, accessory mounts
Fork	Canyon FK0143 CF (carbon), 580 g
Fork steerer	1 1/8"
Fork axle	12 × 100 mm thru-axle (Canyon)
Fork tire clearance	54 mm
Fork mounts	Triple mounts each side

Drivetrain#

Component	Model	Spec
Shifters	Shimano GRX Di2 ST-RX825	1× hydraulic integrated, 2-piston, 389 g
Rear derailleur	Shimano Deore XT Di2 RD-M8250-GS	Medium cage, 450 g
Crankset	Shimano GRX FC-RX820	40T narrow-wide, 1×, 172.5mm Arm Lenght
Cassette	Shimano Deore XT CS-M8200-12	9–45T, 12-speed
Chain	Shimano Deore XT CN-M8100 12-speed	12-speed
Bottom bracket	Shimano Pressfit BB72	PF 86.5 mm, 65 g
Battery	Shimano BT-DN320	Internal, frame-mounted
Gear range	—	0.89:1 (40×45) – 4.0:1 (40×10)

Brakes#

Component	Model	Spec
Brake levers	Shimano GRX Di2 ST-RX825	Integrated shift/brake, 2-piston
Rotors	Shimano Deore XT MT800	160 mm, 170 g

Wheels & Tires#

Component	Spec
Wheelset	Canyon GR 30 CF (carbon)
Rim depth	30 mm
Rim width (external)	33 mm
Rim width (internal)	27 mm
Rotor mount	Center Lock
Wheel size	700c (all sizes)
Tires (stock)	Schwalbe G-One RX, 700×45
Tire ETRTO	45-622
Tire standard	Tubeless Ready (TLR)
Tire compound	ADDIX Race
Tire protection	V-Guard
Tire max pressure	55 PSI (4 bar)
Tire weight	608 g each

Cockpit & Contact Points#

Component	Model	Spec
Stem	Canyon ST0046	Aluminium, 31.8 mm clamp, 60 mm (Medium)
Handlebar	Canyon HB0067	Aluminium, flared drops, 440 mm (Medium)
Bar tape	Canyon Ergospeed Gel	Black
Seatpost	Canyon S15 VCLS 2.0 CF	Carbon leaf-spring, 20 mm travel, 27.2 mm, 247 g
Saddle	Fizik Argo Terra X5	Unisex, 271 g

The S15 VCLS 2.0 seatpost uses twin carbon blades that flex to absorb road vibration without springs or linkages — adding compliance on long days without adding complexity.

Geometry & Sizing#

Size	2XS	XS	S	M ✓	L	XL	2XL
Stack (mm)	550	559	578	596	619	638	660
Reach (mm)	369	380	388	404	420	429	448
Head tube (mm)	120	126	141	158	183	203	226
Head tube angle	68.8°	69.5°	70.5°	71°	71°	71°	71°
Seat tube angle	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°
Chainstay (mm)	440	440	440	440	440	440	440
Wheelbase (mm)	1047	1054	1059	1076	1100	1115	1142

All sizes roll on 700c (28") wheels.

Weight & Pricing#

Attribute	Value
Weight	9.16 kg (size M)
Price (CAD)	C$5,699

Accessories#

Accessory	Qty	Key Details
Canyon FIX Minitool 6+1	1	S2 steel, 55×29×6.9 mm, 62 g — fits LOAD downtube storage
Canyon AERO Top Cap Computer Mount	1	Positions Garmin/Wahoo centrally via stem top cap
Canyon Ass Saver	1	Saddle mudguard — 380 × 102 mm, 19 g, clips to front saddle rails
Canyon Carbon Bottle Cage	2	Carbon fibre composite, 20 g each
Canyon LOAD FidLock QuickLoader Grizl	1	Frame bag — Medium-specific fit, 840D nylon, FidLock magnetic 3-point snap, waterproof YKK zip
Canyon Road Underseat Bag	1	Slim saddle bag for tube, levers, multi-tool

AERO Top Cap Computer Mount#

Mounts the Garmin Edge MTB centrally via the steerer’s top cap bolt — cleaner integration than a bar mount, positions the computer closer to the rider’s eye line.

Notes#

The Grizl sits above the Grail in Canyon’s range — more adventure-focused, more tire clearance, rack mounts for touring
The mixed GRX/XT drivetrain pairs GRX’s gravel-optimised ergonomics with XT’s wider 10–45T MTB cassette range
